SOLID CARBIDE ENDMILLS
Technical Specification
- Solid carbide flat endmills are high-precision cutting tools used for slotting, profiling, roughing, pocketing, and general machining operations.
- Suitable for CNC machining centers, milling machines, and high-speed machining applications.
- Ideal for materials including steel, alloy steel, stainless steel, cast iron, hardened steel, aluminum, copper, and composites.
- Available in 2-flute, 3-flute, 4-flute, 5-flute, and variable-flute configurations for optimal performance across different operations.
- Premium Carbide Substrate:
High hardness and toughness provide excellent wear resistance and extended tool life, even at high cutting speeds. - Advanced PVD/CVD Coatings:
- TiAlN / AlTiN: High-heat stability and oxidation resistance for steel and stainless steel.
- AlCrN: Superior wear resistance for high-speed and dry machining.

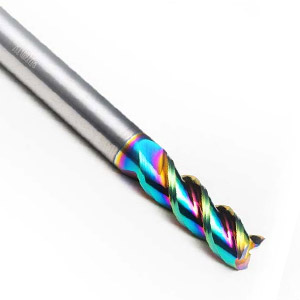

- Diamond & DLC: For high-silicon aluminum, graphite, and abrasive composites.
- 2-Flute Endmills:
Best for aluminum, plastics, and soft materials; excellent chip evacuation; ideal for slotting. - 3-Flute Endmills:
Balanced design for chip removal and rigidity; suitable for light-to-medium cuts in steel and aluminum. - 4-Flute Endmills:
High rigidity for finishing, profiling, and high-speed machining in steel, stainless steel, and cast iron.
CARBIDE ENDMILLS OVERVIEW
| Type | Common Coatings | Typical Uses / Applications | Expected Output | Key Benefits |
|---|---|---|---|---|
| Standard / General-Purpose End Mill | TiAlN, TiN, AlTiN, Uncoated | Balanced MRR (medium), good surface finish, moderate tool life | Versatile use in steels and alloys; good cost-performance | Cost-effective, suitable for most steels and alloys |
| Long-Neck / Extended Reach End Mill | TiSiN, AlCrN | Deep cavity milling, mold & die machining, undercut or recessed features | Access to hard-to-reach areas, moderate MRR, high accuracy | Reduces tool interference, maintains precision at long reach |
| Micro / Miniature End Mill | DLC, TiCN, Diamond-like coatings | Electronics, watchmaking, precision molds, micro-components | Very high accuracy, excellent surface finish, low MRR | Ideal for micro-features and fine-detail machining |
| Ball Nose End Mill | TiAlN, AlCrN | 3D contouring, die and mold finishing, surface blending | Smooth surface finish, good chip control | Ideal for 3D shapes and sculpted surfaces |
| Corner Radius End Mill | TiAlN, AlTiN | High-feed finishing, tool steel machining, sharp-edge protection | Longer tool life, stronger cutting edge, good finish | Reduces edge chipping and improves life in hard materials |
| Tapered End Mill | AlTiN, TiSiN | Mold and die cavities, angled slots, deep walls | Good surface accuracy, stable at depth | Strengthened core, minimizes chatter in deep cavities |
| High-Feed End Mill | TiSiN, AlCrN | Stainless, titanium, nickel alloys (aerospace, die/mold) | Very high feed rate, high MRR, reduced heat | Shorter cycle time and excellent tool life |
| Finishing End Mill | TiAlN, TiCN | Final passes, small depth finishing on precision surfaces | High-quality surface finish (Ra 0.4 µm), low vibration | Consistent finish, accurate geometry, minimal polishing needed |
| Aluminum-Specific End Mill | DLC, TiB₂, ZrN (for non-ferrous) | Non-ferrous materials: aluminum, copper, brass, plastics | Very high speed cutting, excellent chip evacuation, mirror-like finish | Prevents built-up edge, achieves high throughput |
| Graphite / Composite End Mill | Diamond-coated (CVD, PCD) | Graphite electrodes, carbon fiber, composites | Extended tool life, minimal delamination | Handles abrasive materials with precision |

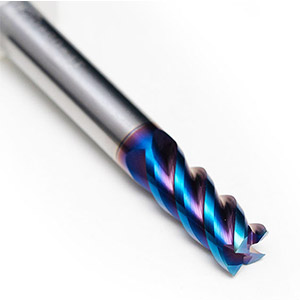

| High-Hardness / Hardened Steel End Mill | AlCrN, TiSiN, nACo | 45–70 HRC steels, die steels, alloy steels | Stable cutting at high hardness, long tool life | Reduces tool wear, maintains dimension stability in hardened workpieces |
With a strong commitment to quality, durability, and performance, Edge Cut Tools has earned the confidence of clients across diverse industries such as engineering, fabrication, automotive, metalworking, and industrial production.
